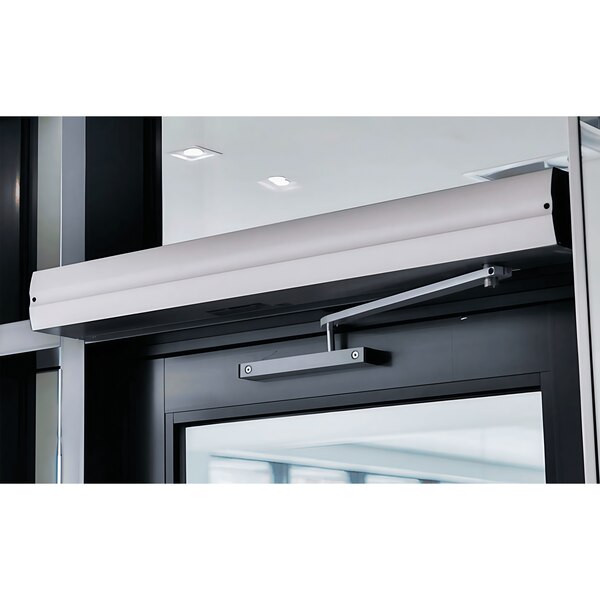

41" Header Clear Color Door Operator (ADC-AI-S300-CL-41)

· Power supply: 115 V AC, 60 HZ
· Power consumption: Max. 100 W
· Auxiliary output voltage: 24 VDC up to 1A
· Fuse type: 5A @ 500V, Slow-Blow
· Electric lock relay type: MOSFET
· Lock relay rating: 5.7A @ 100 VDC(limited to1.1A @ 24 VDC)
· motor: Rating: 1/4HP, 16 VDC
· motor: Permanent Magnet (PM) Silent
· Operating range: -40º to 50º C (-40º to 122º F)
· Relative humidity: Max. 100%
