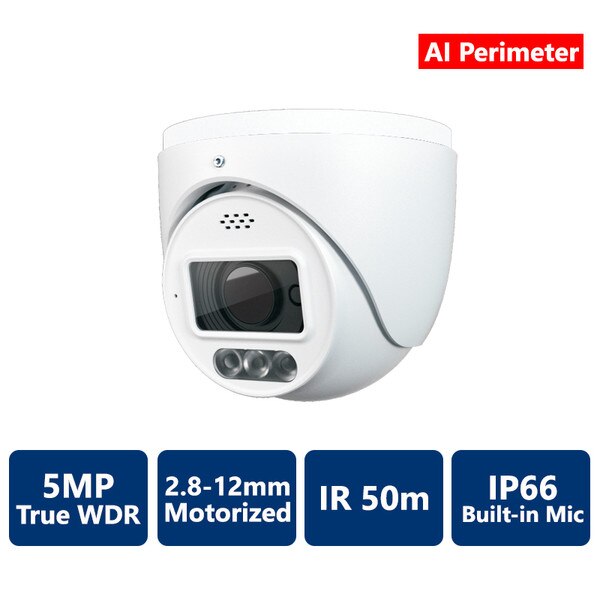

5MP AI Perimeter IP Motorized Turret (CAM-IP6195-PA-Z-AI)
Description
- 5MP ( 2592 × 1944) H.265 full real time coding
- ICR auto switch, true day / night vision
- 50m IR night view distance; 2.8~12mm motorized zoom lens
- 3D DNR, true WDR, HLC, BLC, Defog and ROI coding
- 1CH audio input; 1CH audio output; 1CH speaker; 1CH MIC
- Built-in micro SD card slot, up to 256GB
- DC12V/PoE power supply
- IP 66 ingress protection
- P2P function optional
- Support remote monitoring
- Intelligent analytics
Information
| Image Sensor | 1 / 2.7" CMOS |
| Image Size | 2592 × 1944 |
| Electronic Shutter | 1 / 30 s ~ 1 / 100000 s |
| Iris Type | DC Iris |
| Min. Illumination | 0.008 lux@F1.4,AGC ON; 0 lux with IR 0.0045 lux@F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8~12mm F1 @ .4, motorized |
| Field of View | Horizontal: 92.7° ~29.8° ; Vertical: 76.4° ~22.6°; Diagonal: 105.4° ~36.8° |
| Lens Mount | Φ14 |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 5MP (2592×1944), 4MP (2592×1520), 2K (2560×1440), 3MP(2304×1296),1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240 |
| Main Stream | 5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz : 1~25fps ) HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) |
| Sub Stream | 720P/D1/CIF /480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Third Stream | D1/CIF 480 240 / × ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Bit Rate Type | VBR / CBR |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH audio input; 1CH audio output; 1CH built-in speaker; 1CH built-in MIC |
| Storage | Built-in micro SD card slot; up to 256GB |
| Reset | Yes |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, corridor pattern |
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, cable disconnection |
| PoE | Yes, IEEE802.3af |
| White Light Range | 50 m |
| Ingress Protection | IP66 |
| Video Abnormality | Scene change detection, video blur detection, video color cast detection |
| Perimeter Detection | Line crossing detection (human/vehicle classification); Region intrusion/entrance/exiting detection (human/vehicle classification |
| Sound&Light Warning | Yes |
| Power Supply | DC12V/PoE |
| Power Consumption | < 11.5W |
| Operating Conditions | - 30 °C ~ 60°C (-22 °C °F~140°F), Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | Φ111.5 × 99.6 |
| Weight ( net ) | Approx. 0.64KG |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
