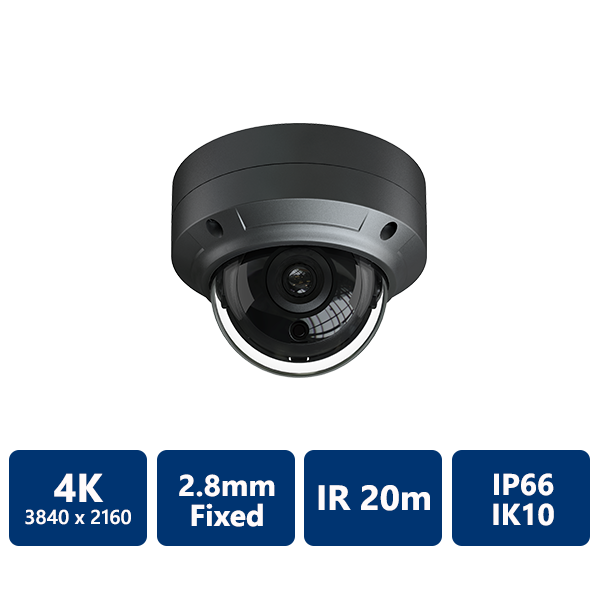

EYEONET 4K Ultra HD IP IR Water-resistant Vandal Dome, 2.8mm Fixed, Grey(CAM-IP639E8G-28-4K)
Description
- H.265, 4K
- 2.8mm fixed lens, IR 20m
- 3D DNR, DWDR
- PoE power supply / DC12V
- P2P, IP66 & IK10, Grey
Information
| Image Sensor | 1 / 2.5 "CMOS |
| Image Size | 3840 × 2160 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.068lux @ F2.0, AGC ON; 0.024lux @ F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan : 0°~355°, Tilt : 0°~67°, Rotation : 0°~355° |
| Video Compression | H.265 MP; H.264 BP / MP / HP; MJPEG |
| Resolution | 4K (3840 ×2160), 4MP(2560×1440), 3MP(2304×1296), 1080P(1920×1080), 720P(1280×720), D1, CIF, 480×240 |
| Main Stream | 60Hz :4K(1~20fps ) / 2K(1~30fps) / 3MP(1~30fps) / 1080P(1~30fps) 50Hz :4K(1~20fps)/ 2K (1~25fps) /3MP(1~25fps) / 1080P(1~25fps) |
| Bit Rate | 128Kbps~10Mbps |
| Image Settings | Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Anti-flicker, BLC, HLC, defog, smart IR etc. adjustable through client or web browser |
| ROI | Support |
| Network | RJ45 x 1 |
| Remote Monitoring | Web browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, HTTPS, QoS, 802.1X, SNMP |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion alarm |
| PoE | Yes |
| IR Distance | 20 m |
| Ingress Protection | IP66, IK10 |
| Power Supply | DC12V/PoE |
| Power Consumption | < 2.5W |
| IR Consumption ON | < 6W |
| Operating Environment | Temperature: -30°C~60°C; RH: <95%(non-condensing) |
| Dimensions ( mm ) | Φ117 × 90 |
| Weight ( net ) | Approx. 0.58KG |
| Installation | Ceiling mounting (wall mounting available with the juction box and bracket) |
Specification: CAM-IP639E8G-28-4K
Software: IP Config Tool
