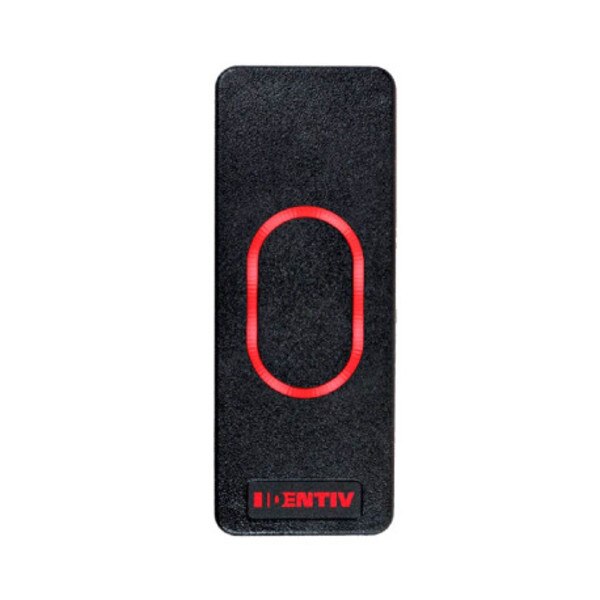

TS PROXIMITY Mullion READER (400-50-8020)
Description
- CARRIER FREQUENCIES: 125 kHz
- OUTPUT: Wiegand or RS-485 (2 wire)
- CURRENT CONSUMPTION: 100 mA Average; 133mA Peak
- DIMENSIONS: 11.8 x 4.3 x 2.8 cm (4.6 x 1.7 x 1.1 in)
- OPERATING TEMPERATURE: -35° to 66°C (-31° to 149°F)
- STORAGE TEMPERATURE: -35° to 85° C (-31° to 185°F)
- OPERATING HUMIDITY: 5 to 95% relative humidity (non-condensing)
- OUTPUT: Wiegand or RS-485 (2 wire)
- CURRENT CONSUMPTION: 100 mA Average; 133mA Peak
- DIMENSIONS: 11.8 x 4.3 x 2.8 cm (4.6 x 1.7 x 1.1 in)
- OPERATING TEMPERATURE: -35° to 66°C (-31° to 149°F)
- STORAGE TEMPERATURE: -35° to 85° C (-31° to 185°F)
- OPERATING HUMIDITY: 5 to 95% relative humidity (non-condensing)
