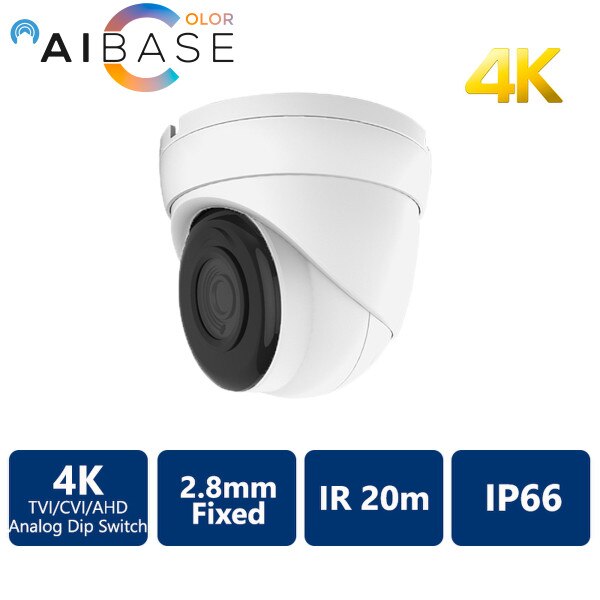

4K UHD 4-In-1 HD Analog Turret, 2.8mm Fixed (CAM-IX3138W-28)
Description
- 1/2.7" 4K Progressive CMOS
- 2.8mm fixed lens, 3840x2160
- 0.05lux@F1.2(AGC ON),0Lux with IR ON
- Built-in dip switch for easy signal change
- 4-In-1 HD CVI /HD TVI/ AHD/ CVBS Output switchable
- Built-in Microphone
- IR 20m, DWDR
- DC12V, IP66
- NDAA Compliant
Information
Imaging Device | 1/2.7" Progressive CMOS |
Total Pixels | 3872(H)×2180(V) |
Effective Pixels | 3840(H)×2160(V) |
Scanning System | Progressive |
Min. Illumination | 0.05lux@F1.2(AGC ON),0Lux with IR ON |
Video Output | BNC |
Resolution | 8MP 3840(H)×2160(V) |
Max, Framerate | AHD/TVI/CVI: 8MP@15fps CVBS: 960H |
Focal Length (Zoom Ratio) | 2.8MM |
Max. Aperture Ratio | F2.0 |
Angular Field of View | H:102° / V:54.7° / D:124.4 |
Min. Object Distance | 0.6m |
Lens Type | Fixed lens |
Viewable length | Up to 20m |
On Screen Display | English |
Day & Night | Smart / Auto / Color / B/W |
Backlight Compensation | GLOBAL / BLC |
Wide Dynamic Range | D-WDR (Off/On) |
Digital Noise Reduction | 2D DNR/td> |
Gain Control | HIGH |
White Balance | ATW |
Electronic Shutter Speed | AUTO |
Max. Aperture Ratio | F2.0 |
Reverse | Mirror |
Remote control interface | ACP (AHD Coax Protocol) |
Video Transmission Distance | MAX 300M ( Cable : 5C 2V) |
Operating Temperature/Humidity | -30°C ~ 55°C / 90% |
Ingress Protection | IP66 |
Safety | CE LVD |
EMC | CE EMC、FCC |
ROHS | RoHS2.0 |
Specification: AIBASE Color Camera Bracket Match
