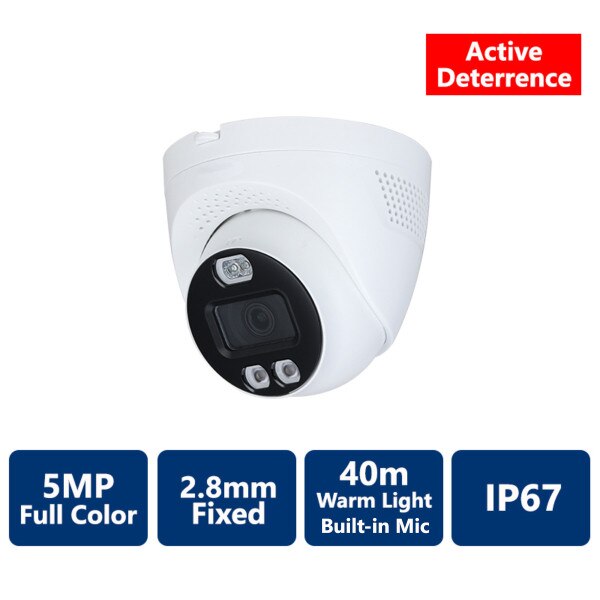

5MP Active Deterrence Full Color 4-In-1 HD Analog Turret, 2.8mm Fixed(CAM-IC9115TQ-28-PV-LED)

(0) No Reviews yet
SKU: CAM-IC9115TQ-28-PV-LED

Description

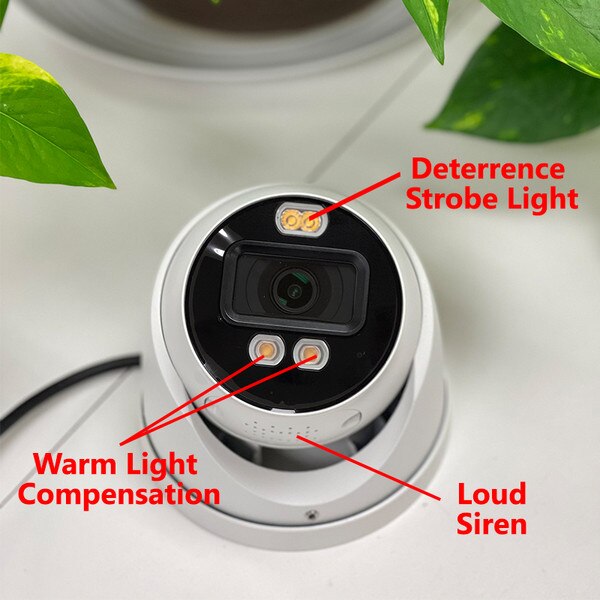

- 24/7 color imaging, warm light compensation

- Active deterrence with warm light, siren and alarm out interface

- Quick-to-install turret saves installation time.

- 5MP, 4-In-1 CVI/TVI/AHD/Analog switchable

- 2.8 mm fixed lens, Built-in Mic

- 40 m illumination distance

- IP67, 12V±30% DC



Information

Image Sensor1/2.7" CMOS
Max. Resolution2592 (H) × 1944 (V)
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
S/N Ratio>65 dB
Min. Illumination0.005 Lux/F1.2, 0 Lux warm light on
Illumination Distance40 m (131.2 ft)
Illumination TypeWarm light
Illuminator On/Off ControlAuto; manual
Illuminator Number2 (Warm light)
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Frame RateCVI:
5M@20 fps, 4M@25 fps/30 fps, 1080p@25 fps/30 fps;
AHD:
5M@20 fps;
TVI:
5M@20 fps;
CVBS:
960H
Resolution5M (2592 × 1944); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
BLC ModeBLC/HLC/DWDR
WDRDWDR
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction2D
Smart LightYes
MirrorOff/On
Privacy MaskingOff/On (8 Area, Rectangle)
CertificationsCE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017,EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
IEC 62368-1:2014 (Second Edition)
Video Output1 BNC output
Support CVI/TVI/AHD/CVBS
Alarm out1ch alarm out
Warm Light WarningFlash: 5 s–30 s; frequency: high/medium/low
Sound WarningAudio 1/2/3; Volume: high/medium/low;
duration: 5 s–30 s; 110 dB
Power Supply12V ±30% DC
Power ConsumptionMax 7.7W (12V DC, warm light on)
Specification: CAM-IC9115TQ-28-PV-LED
Video: Link
