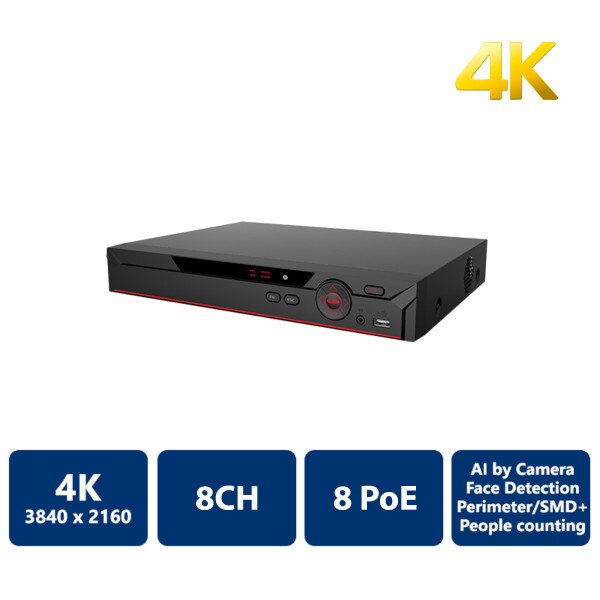

8 Channel Compact 1U 8PoE 4K&H.265 Network Video Recorder(NVR-NV41A08-P8-4K-S2L)

(0) No Reviews yet
SKU: NVR-NV41A08-P8-4K-S2L

Description

- New 4.0 user interface, Security baseline 2.1
- H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
- Supports mainstream cameras of ONVIF and RTSP protocols
- P2P remote surveillance, video play on mobile device
- VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
- AI by Camera: 4ch Face detection, 8ch perimeter protection, 8ch SMD. Support camera IVS, people counting & heat map
- Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches

Information

Main ProcessorIndustrial-grade embedded processor
OSEmbedded Linux
Operation InterfaceWeb/operating in local GUI
Access Channel8
Network BandwidthAccess: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability8 × 1080p@30 fps
Video Output1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Multi-screen Display1 , 4 , 8 , 9 views
Third-party Camera AccessONVIF; RTSP
VideoSmart H.265/H.265/Smart H.264/H.264/MJPEG
AudioPCM/G711A/G711U/G726/AAC
Network ProtocolHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone AccessAndroid; iOS
InteroperabilityONVIF(profile T/S/G); CGI; SDK
BrowserChrome; IE9 or later; firefox
Multi-channel PlaybackUp to 8 channels for playback
Record ModeManual record; alarm recording; SMD recording; smart recording
StorageLocal HDD; network
BackupUSB storage device
Playback Function1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off
General AlarmMotion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly AlarmCamera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent AlarmFace detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm LinkageRecording, snapshot, audio, buzzer, log, preset, and email
Audio Input1 × RCA input
Audio Output1 × RCA output
HDD1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB2 (1 × front USB2.0; 1 × back USB2.0)
HDMI1 (supports up to 4K resolution output)
VGA1
Network1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
POE8
Power SupplyDC48 V/53 V, 2A/1.8 A
Power Consumption< 10 W (HDD not included, idling)
Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
HDD1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
Net Weight0.92 kg (2.03 lb)
Gross Weight2.07 kg (4.56 lb)
Product Dimensions260 mm × 232.5 mm × 50.3 mm (10.24" × 9.15" × 1.98")(W × L × H)
Package Dimensions117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09")(W × L × H)
Operating Conditions–10 °C to +55 °C (+10 °F to +131 °F)
Storage Conditions0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity10c/o~93c/o
Storage Humidity30%~85%
Operating Altitude–10 °C to +55 °C (+10 °F to +131 °F)
Operating Conditions3000 m (9842.52 ft)
InstallationDesktop mounted
CertificationsCE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B
Specification: NVR-NV41A08-P8-4K-S2L
Software: IP Config Tool
