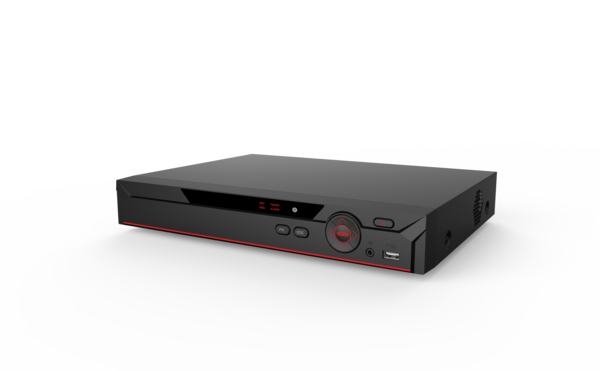

8 Channels Penta-brid 4K-N/5MP Mini 1U 1HDD WizSense Digital Video Recorder (XVR-XV51A08H-4KL-I3)
Description
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Up to 16 channels IP camera inputs, each channel up to 8MP; up to 128 Mbps incoming bandwidth
- AI Perimeter Protection and SMD Plus
- Up to 2 channels video stream (analog channel ) human face recognition
- IoT & POS functionalities
Information
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Performance | 2 channels, 10 IVS for each channel |
| Object classification | Human/Vehicle secondary recognition for tripwire and intrusion |
| AI Search | Search by target classification (Human, Vehicle) |
| Performance | 8 channels |
| AI Search | Search by target classification (Human, Vehicle) |
| Analog Camera Input | 8 channels, BNC |
| HDCVI Camera Input | 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera Input | 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera Input | 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera Input | PAL/NTSC |
| IP Camera Input | 8+8 channels, each channel up to 8MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF |
| Record Rate | Main stream: All channel 4K(1fps–7fps); 6MP(1fps–10fps); 5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps); Sub steram:960H(1fps–15fps); D1/CIF(1fps–25/30fps) |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Sample Rate | 8 KHz, 16 bit Per Channel |
| Audio Bit Rate | 64 Kbps Per Channel |
| Interface | 1 HDMI ,1 VGA |
| Resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Interface | 1 RJ-45 Port (1000 MB) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | N/A |
| Alarm input | N/A |
| Internal HDD | 1 SATA Port, up to 14TB capacity |
| eSATA | N/A |
| USB | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) |
| RS485 | 1 Port, for PTZ Control |
| RS232 | N/A |
| Power Supply | DC 12V/2A |
| Power Consumption (Without HDD) | <10W |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
