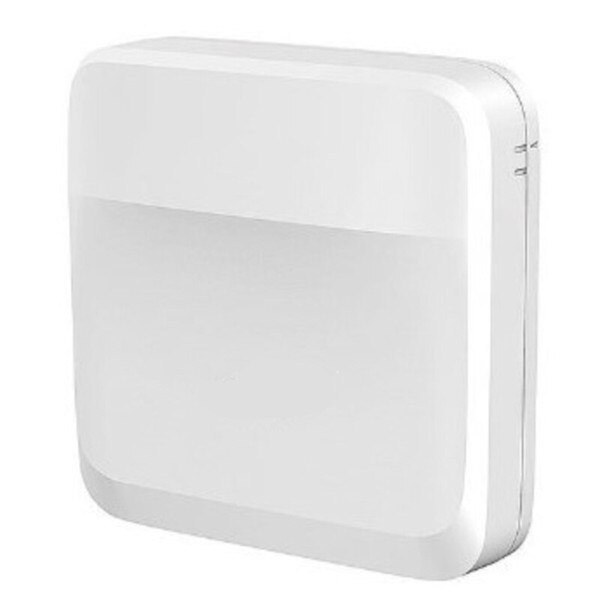

Single-Interface Web Access Controller ADC-EG4-ASC3202B
Description
> Bulit-in Web server, features main and sub control modes.
> The main control mode offers access control Platform functions,can connect with and manage up to 19 sub controllers. The sub-control modes can be added to multiple platforms.management)
> Supports 1000 users, 3000 fingerprints, and 300,000 records.
> Accesses card readers through Wiegand and RS-485 protocols.
> Supports TCP and IP connection, and standard PoE.
> Supplies power to the lock through its 12 VDC output power supply, which has a maximum output current of 1000 mA.
> Supports configuring the hardware I/O port and exporting configuration diagrams.
> Retains stored data even while powered off.
> The main control mode offers access control Platform functions,can connect with and manage up to 19 sub controllers. The sub-control modes can be added to multiple platforms.management)
> Supports 1000 users, 3000 fingerprints, and 300,000 records.
> Accesses card readers through Wiegand and RS-485 protocols.
> Supports TCP and IP connection, and standard PoE.
> Supplies power to the lock through its 12 VDC output power supply, which has a maximum output current of 1000 mA.
> Supports configuring the hardware I/O port and exporting configuration diagrams.
> Retains stored data even while powered off.
