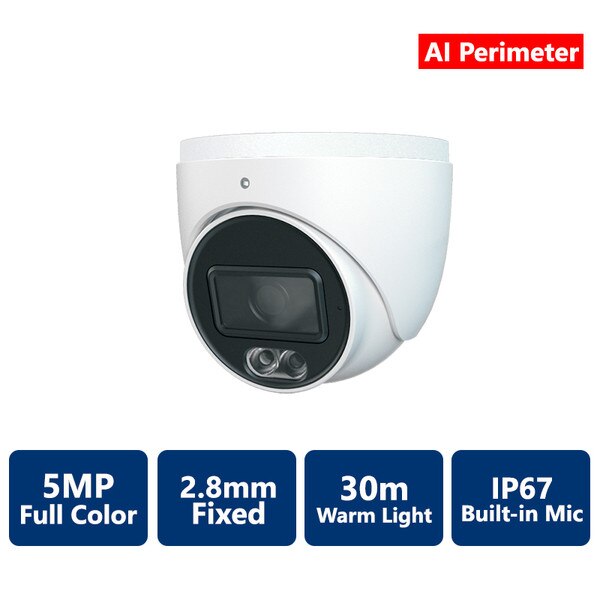

5MP Full-Color Turret IP Camera (CAM-IP6195-LED-28-AI)
Description
- 5MP ( 2592 × 1944) H.265 full real time coding
- Up to 30m white light view distance
- 3D DNR, true WDR, HLC, BLC, Defog and ROI coding
- Intelligent analytics
- Support image distortion correction
- Built-in micro SD card slot, up to 256GB
- DC12V/PoE power supply
- IP 67
- Support remote monitoring
Information
| Image Sensor | 1 / 2.7" CMOS |
| Image Size | 2592 × 1944 |
| Electronic Shutter | 1s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0 lux (LED ON) |
| S/N Ratio | ≥50dB |
| Lens | 2.8 mm@F1.0, horizontal FoV: 94.8°; vertical FoV: 78.4°; diagonal FoV:107.3° |
| Focus | Fixed |
| Lens Mount | M12 |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 5MP (2592×1944), 4MP (2592×1520), 2K (2560×1440), 3MP(2304×1296),1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240 |
| Main Stream | 5MP/4MP/2K/3MP/1080P / 720P( 1 ~ 30fps; 50Hz: 1~25fps ) 60Hz : |
| Sub Stream | 720P/D1/CIF /480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Third Stream | D1/CIF 480 240 / × ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH audio input; 1 CH built-in MIC |
| Storage | Built-in micro SD card slot; up to 256GB |
| Reset | Yes |
| Alarm | No |
| Intelligent Analytics (Smart Events) | Line crossing, intrusion (human/motor vehicle/non-motor vehicle classification) |
| Target Counting | Line crossing human/motor vehicle/non-motor vehicle counting |
| Exception Detection | Scene change, video blur and video color cast detection |
| Face Detection | Face detection and face capture |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, corridor pattern |
| Smart Alarm | Motion detection, SD card error, SD card full |
| PoE | Yes, IEEE802.3af |
| White Light Range | 30 m |
| Ingress Protection | IP67 |
| Power Supply | DC12V/PoE |
| Power Consumption | < 7W |
| Storage Conditions | - 30 °C ~ 65 (-22 °C °F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions | - 30 °C ~ 60 (-22 °C °F~140°F), Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | Ø 94.6 × 82.8 |
| Weight ( net ) | Approx. 0.46KG |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
