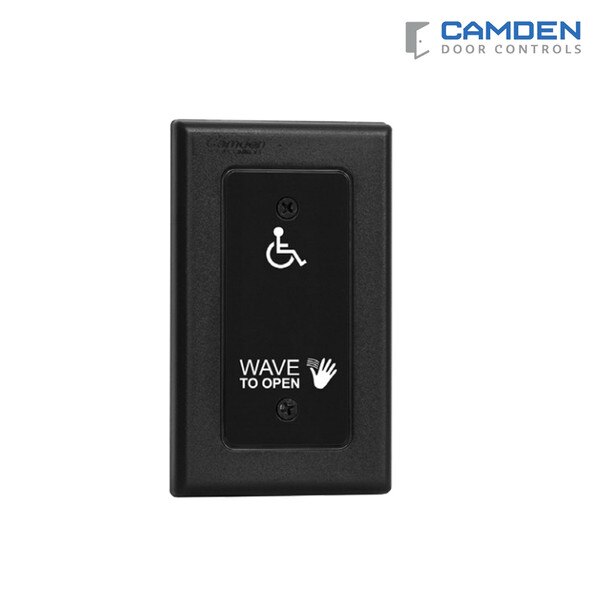

Camden SureWave™ Single Gang Touchless Hybrid Battery Powered Switch with 1 Relay (CMD-CM-333/42)
Description
CM-333 hybrid battery powered touchless switch with relay provides ‘state of the art’ door activation while eliminating the spread of germs.
Battery powered touchless switches offer an adjustable operating range, selectable motion sensing and momentary or maintained relay operation. CM-333 switches are also Lazerpoint RF™ compatible with CM-TX99 plug in wireless transmitter.
No. of ir sensors: 1
Batteries: (2) ‘aa’ alkaline (supplied) (2) ‘aa’ lithium batteries (optional)
Estimated battery life: 2 years (based on 100 operations/day)
Standard operating range: 1”- 12” (25.4mm - 304mm)
Motion sensing modes: momentary, momentary with alarm maintained (latching)
Relay output: (1) form ‘c‘ (spdt)
Relay contact rating: 3 amps @ 30 vdc
Output type: fail safe/non-fail safe operation
Inputs: request to exit’, external (door contact) input
Optional wireless output: tx-99 plug-in 915mhz.
Battery powered touchless switches offer an adjustable operating range, selectable motion sensing and momentary or maintained relay operation. CM-333 switches are also Lazerpoint RF™ compatible with CM-TX99 plug in wireless transmitter.
No. of ir sensors: 1
Batteries: (2) ‘aa’ alkaline (supplied) (2) ‘aa’ lithium batteries (optional)
Estimated battery life: 2 years (based on 100 operations/day)
Standard operating range: 1”- 12” (25.4mm - 304mm)
Motion sensing modes: momentary, momentary with alarm maintained (latching)
Relay output: (1) form ‘c‘ (spdt)
Relay contact rating: 3 amps @ 30 vdc
Output type: fail safe/non-fail safe operation
Inputs: request to exit’, external (door contact) input
Optional wireless output: tx-99 plug-in 915mhz.
