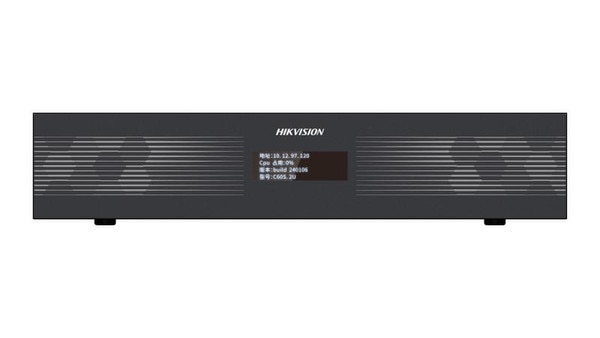

Video Wall Controller Casing(6 solts) DS-C60S-S6
Description
- Hardware Structure
- Adopts 2 U standard rack design and supports the mixed installation of input boards and output boards in some slots of the chassis.
- Adopts a 3.3-inch non-touch screen panel to allow you to view the device status information at any time.
- Adopts 1 fan, left air duct, and right air duct for ventilation.
- Adopts the plug-in modular design and hot swappable service boards to allow the flexible device extension and easy device maintenance.
- Video Input
- Supports video input signal sources such as computers, video conference terminals, and ultra high definition servers. Supports DVI, HDMI, 4K HDMI, and 4K DP signal input, and custom resolution input.
- Supports composite audio input and independent audio input. The audio input supports 16 bit and 32 KHz or 48 KHz sampling, and dual channel.
- Adopts RGB 888 image collection and output without image quality loss.
- Supports ultra-high resolution fusion and up to eight 4K ultra-HD signal access.
- Supports OSD on the input.
- Supports input image clipping to cut the black edge of the input image.
- Video Output
- Supports DVI, HDMI, and 4K HDMI video signal output and the video signal output via network ports.
- The 2K board supports 4 channels of 1080p@60 Hz output, and the 4K board supports 2 channels of 4K output. Supports LCD output, LED output, and custom output resolution.
- Supports composite audio output.
- Adopts frame synchronization technology to ensure that the images of all output ports are completely synchronized, with complete picture and smooth playback, and without lag, frame loss, tearing, or splicing.
- Video Decoding
- Supports using the installed decoding board to decode the signal sources of network cameras and NVRs.
- Video Wall Function
- Supports any large screen splicing of 16 screens when the device is fully installed with input and output boards.
- Supports window opening and floating windows. A single port supports window opening of any layer.
- Supports 1/4/6/8/9/16 window division.
- Supports using the installed preview board in the chassis to display the image of a video wall on the connected screen(s) or to preview the image of a video wall on a client.
- Supports 3 background images. The resolution of each background image is 1080p.
- Supports 3 video walls. Each video wall allows one background image.
- Supports up to 9 subtitles for the video wall controller, up to 3 subtitles for one video wall and configuration of different types of subtitles.
- Supports up to 128 scenes. You can customize the video wall layout and save it as a scene.
- Supports the auto-switching of up to 64 signal source groups. Supports auto-switching on a single window, on some windows, and on all windows. You can save all auto-switch resources in the scenes and customize the location, scene, and time in each plan.
- Supports double-clicking the sub-window to enlarge its window size and double-clicking the sub-window again to restore its original window size.
- Device Access and Control
- Supports using the network keyboard or serial port keyboard to control the device, and to realize sub-window changing, group operation and scene changing.
- Supports using the software to control LCD screens, including screen switch, screen signal source changing, and the adjustment on brightness, contrast, color, sharpness, picture horizontal position, and picture vertical position.
- Supports using the ONVIF protocol to access the network source devices for decoding.
- Maintenance and Management
- Supports the access and operation via the control client and web client. The web browser should be Chrome 45 and higher version.
- Supports the access and operation via the mobile client (Android or iOS).
