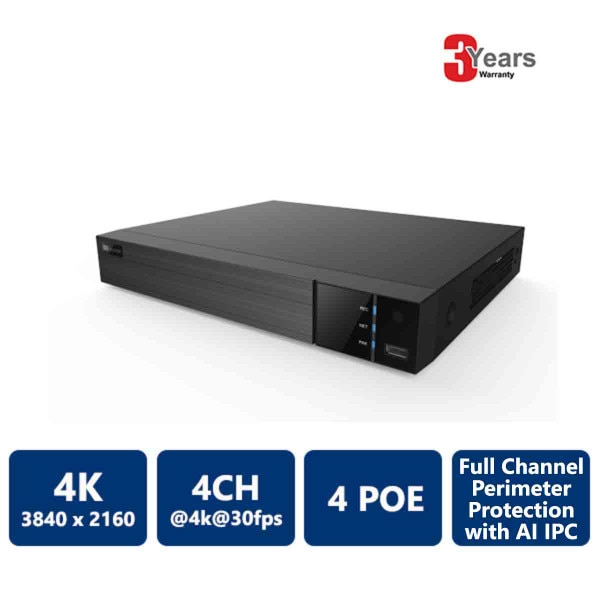

EYEONET 4CH 4 PoE 4K Real Time NVR(NVR-63104-4P-N2)
Description
- All channel AI Perimeter Protection with specific AI IPC (IP6194W-28-AI, IP6394W-28-AI)
- H.265, 4K UHD, 4 PoE
- All channels simultaneous playback
- 4CH@4K@30fps real time recording
- Support IVS & P2P
- 4CH POS Integraion
- English & French
- H.265, 4K UHD, 4 PoE
- All channels simultaneous playback
- 4CH@4K@30fps real time recording
- Support IVS & P2P
- 4CH POS Integraion
- English & French
Information
Compression | Standard H.265 |
OS | Embedded Linux |
Network Input | 4 CH IPC input |
Network Access Bandwidth | 40Mbps |
Network Access Format | 4K / 5MP / 4MP / 3MP / 1080P / 960P / 720P @30fps |
Output | HDMI × 1: 4K × 2K / 1920 × 1080 / 1280 x 1024 VGA × 1 : 1920 × 1080 / 1280 × 1024 |
Network Input | 4 CH IPC audio input |
2-way Audio | RCA × 1 |
Local Output | RCA × 1 |
Simultaneous Playback | Max 4 CH |
Search | Time slice / time / event / tag search |
Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
Function | Play, pause, FF, FB, digital zoom, etc. |
Record Stream | Dual stream recording |
Resolution | 4K / 5MP / 4MP / 3MP / 1080P / 960P / 720P |
Mode | Manual, timer, motion, sensor |
Mode | Manual, sensor, motion, exception |
Input | Support IPC alarm input |
Output | Support IPC alarm output |
Triggering | Record, snap, preset, e-mail, etc. |
Interface | RJ45 10 / 100 Mbps × 1 |
PoE Port | RJ45 × 4 |
Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
Web Client | Max 10 users online |
USB | USB 2.0 × 2 ( one in the front panel and the other in the rear panel ) |
Remote Controller | Optional |
Power Supply | DC48V |
Consumption | ≤ 5W ( without HDD ) |
Dimensions (mm) | 300 × 270 × 55 ( W × D × H ) |
Work Environment | -10 ~ 50 °C,10% ~ 90% humidity |
Software: IP Config Tool
