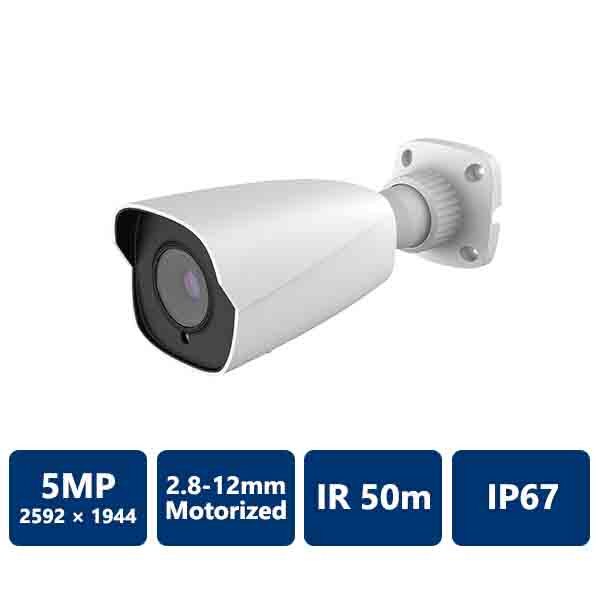

EYEONET 5MP IP IR Water-resistant Bullet, 2.8-12mm Motorized(CAM-IP679E5W-Z-S3)
Description
- H.265, 5MP
- 2.8-12mm motorized lens, IR 50m
- 3D DNR, ICR, DWDR
- IP67, PoE / DC12V
Information
| Image Sensor | 1 / 2.7 "CMOS |
| Image Size | 2592×1944 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.0236 lux @F2.0, AGC ON; 0 lux with IR 0.0085 lux @ F1.2, AGC ON; 0 lux with IR |
| Lens | 2.8~12mm @F1.4, horizontal field of view: 90.5°~32.9° |
| Lens Mount | M12 or Φ14 optional |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
| Video Compression | H.265 / H.264/ MJPEG |
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 5MP ( 2592 × 1944 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 5MP(1~20fps)/720P(1~30fps) 50Hz : 5MP(1~20fps)/ 4MP(1~25fps)/ 1080P(1~25fps)/720P(1~25fps) |
| Sub Stream | 60Hz :720P (1~15fps)/D1 (1~30fps)/CIF (1~30fps); 50HZ:720P (1~12fps)/D1 (1~25fps)/CIF (1~25fps) |
| Third Stream | 60Hz : D1/CIF/480x240 (1~30fps); 50HZ: D1/CIF/480x240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 5 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | No |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Network | RJ45 |
| Remote Monitoring | Web browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol | ONVIF, GB-T/28181-2011 |
| Storage | Network remote storage |
| Smart Alarm | Motion detection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection |
| Intelligent Analytics | Object removal detection, abnormal video signal detection, intrusion detection and line crossing detection (optional) |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection |
| PoE | Yes |
| IR Distance | 50 m |
| Ingress Protection | IP67 |
| Power Supply | DC12V/PoE |
| Power Consumption | < 9W |
| Operating Environment | - 30 °C ~ 60°C (-22°F~140°F) Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | 217.7 × 80.5 × 80.5 |
| Weight ( net ) | Approx. 0.65KG |
| Installation | Ceiling mounting(Wall mounting available with the junction box and bracket) |
Specification: CAM-IP679E5W-Z-S3
