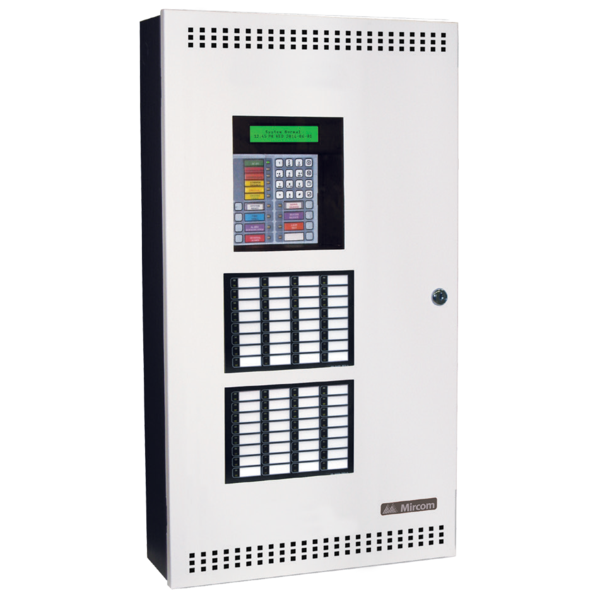

Mircom FX-351-LW 126 POINT INTELLIGENT FIRE ALARM CONTROL UNIT

• Single Addressable SLC Loop that supports 126
addressable points. Expandable to 378 points with
ALC-252 Dual Loop Controller Module.
• Points can be any combination of Addressable
Sensors or Modules
• Supports Photoelectric Sensors, Variable
Heat Sensors and Multi–Sensor (Heat/Photo)
• Equipped with 2 line by 20 character backlit LCD
display and numerical keypad
• LCD display allows for 32 characters to be configured
for user defined messages
• Includes 32 zone Alarm & Trouble LED configurable
annunciatior that can be expanded to 64 zones
• Available with or without an integrated UDACT/Digital
Communicator
• Digital Communicator can be configured for DACT
or UDACT mode of operation
• Configurable via the front panel, PC Configurator, or
remote dial up through the built-in modem
• Sensors can be configured as Alarm, Verified Alarm,
Latching or Non-Latching Supervisory, Monitor and
Trouble-Only
• Modules can be configured as Alarm, Latching
Supervisory, Non-Latching Supervisory, Water Flow,
Monitor, Trouble, Fire Drill Switch, Signal Silence Switch,
Aux Disconnect Switch and Buzzer Silence Switch
• Base panel is equipped with Four Class “B” (Style “B”)
indicating circuits which may be configured as Class “A”
(Style “Z”) using a Class “A” signal converter module
• Indicating Circuits may be configured as Silenceable
or Non-Silenceable for both signals and strobes
• Built-in sync protocols for the following strobe
manufacturers: Mircom, Amseco, System Sensor,
Gentex, Faraday and Wheelock
• Relay contacts for Common Alarm, Auxiliary/
Alarm (Disconnectable), Common Supervisory and
Common Trouble
• Configurable Signal Silence Inhibit, Auto Signal
Silence, Two Stage Operation and One-Man Walk Test
• Subsequent Alarm, Supervisory, and Trouble operation
• RS-485 Interface for Remote LED and LCD
Annunciators
• Interface for a Remote Trouble Indicator (RTI-1)
• Two event history logs comprised of a 200 event
alarm log for alarm related events and a 200 event
general log for all other events
• 5.5 Amp Power Supply
