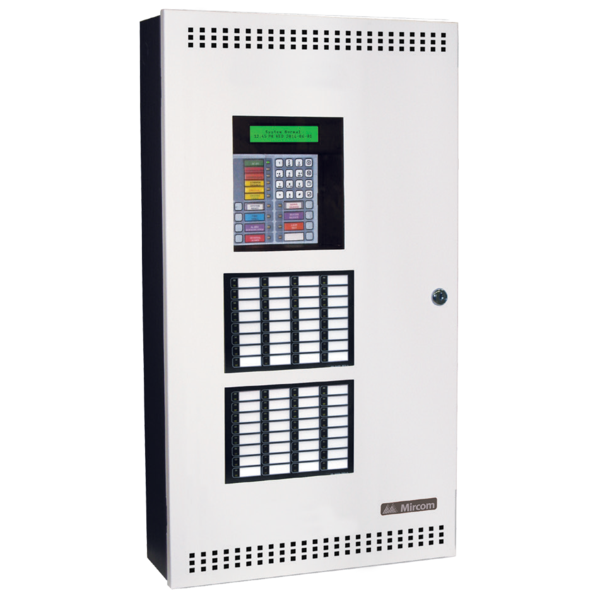

Mircom FX-353-LW 378 POINT INTELLIGENT FIRE ALARM CONTROL UNIT

Three Addressable SLC Loops that support up to 378 addressable points

• Points can be any combination of Addressable Sensors or Modules

• Supports Photoelectric Sensors, Variable Heat Sensors and Multi–Sensor (Heat/Photo)

• Equipped with 2 line by 20 character backlit LCD display and numerical keypad

• LCD display allows for 32 characters to be configured for user defined messages

• Provision for up to 64 zones of LED annunciation with optional RAX-332 Remote Annunciator modules

• Configurable via the front panel,PC Configurator, or remote dial up through the built-in modem

• Sensors can be configured as Alarm, Verified Alarm, Latching or Non-Latching Supervisory, Monitor and Trouble-Only

• Modules can be configured as Alarm, Latching Supervisory, Non-Latching Supervisory, Water Flow, Monitor, Trouble, Fire Drill Switch, Signal Silence Switch, Aux Disconnect Switch and Buzzer Silence Switch

• Base panel is equipped with Four Class “B” (Style “B”) indicating circuits which may be configured as Class “A” (Style “Z”) using a Class “A” signal converter module

• Indicating Circuits may be configured as Silenceable or Non-Silenceable for both signals and strobes

• Built-in sync protocols for the following strobe manufacturers: Mircom, Wheelock, Amseco, System Sensor, Gentex and Faraday

• Relay contacts for Common Alarm, Auxiliary/ Alarm (Disconnectable), Common Supervisory and Common Trouble

• Configurable Signal Silence Inhibit, Auto Signal Silence, Two Stage Operation and One-Man Walk Test

• Subsequent Alarm, Supervisory, and Trouble operation

• RS-485 Interface for Remote LED and LCD Annunciators

• Positive Alarm Sequence

• Interface for a Remote Trouble Indicator (RTI-1)

• Two event history logs comprised of a 200 event alarm log for alarm related events and a 200 event general log for all other events

• 5.5 Amp Power Supply
