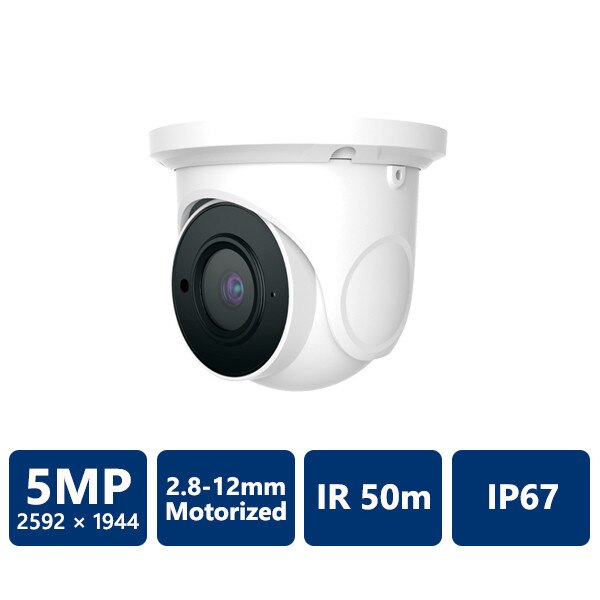

EYEONET 5MP IP Built-in Mic Water-resistant Eyeball, 2.8-12mm Motorized, White(CAM-IP619E5W-Z-S3)
Description
- 5MP, H.265
- 2.8-12mm motorized lens
- DWDR, ICR, 3D DNR
- IR 50m, Built-in Mic
- DC12V/PoE, IP67, White
Information
| Image Sensor | 1 / 2.7 "CMOS |
| Image Size | 2592×1944 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.0236 lux @F2.0, AGC ON; 0 lux with IR 0.0085 lux @ F1.2, AGC ON; 0 lux with IR |
| Lens | 2.8 ~ 12 mm Motorized |
| Lens Mount | Φ14 |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
| Video Compression | H.265 / H.264 |
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 5MP ( 2592 × 1944 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 5MP(1~20fps)/4MP(1~30fps)/1080P(1~30fps)/720P(1~30fps) 50Hz : 5MP(1~20fps)/ 4MP(1~25fps)/1080P(1~25fps)/720P(1~25fps) |
| Sub Stream | 60Hz : 720P /D1 /CIF (1~30fps); 50HZ:720P(1~12fps)/D1(1~25fps)/CIF (1~25fps) |
| Third Stream | 60Hz : D1/CIF/480x240 (1~30fps); 50HZ: D1/CIF/480x240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 5 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Network | RJ45 |
| Audio | 1CH built-in MIC |
| Remote Monitoring | Web browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol | ONVIF, GB-T/28181-2011 |
| Storage | Network remote storage |
| Smart Alarm | Motion detection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection |
| Intelligent Analytics | Object removal detection, abnormal video signal detection, intrusion detection and line crossing detection (optional) |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection |
| PoE | Yes |
| IR Distance | 50 m |
| Ingress Protection | IP67 |
| Power Supply | DC12V/PoE |
| Power Consumption | < 10W |
| Operating Environment | - 30 °C ~ 60°C (-22°F~140°F) Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | Φ 130 × 110 |
| Weight ( net ) | Approx. 0.65KG |
| Installation | Ceiling mounting; Wall mounting |
Specification: CAM-IP619E5W-Z-S3
