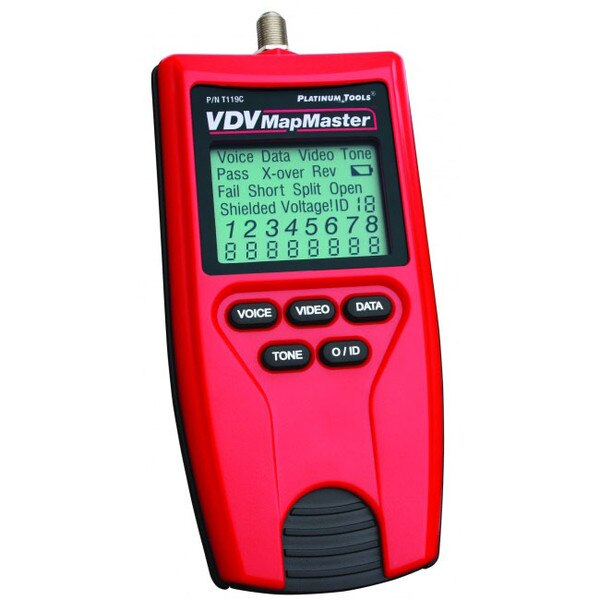

Platinum Tools T119C VDV MapMasterâ„¢(ACC-TOOL-T119C)
Description
- Tests Voice (6 wire), Data (8 wire) and video (coax)
- Easy to read, extra large 7-segment LCD screen with large icons
- Tone generator with selectable tone cadence and selectable pins carrying tone
- RJ (Voice & Data) master remote stores in bottom of case
- Map 19 locations at one time, remotes sold separately
- Tests and indicates pins with shorts, opens reversals, miswires and split pairs
- Displays 'Pass' icon for correctly wired T568A/B 8 & 6 pin and crossover/uplink
- Low power consumption for long battery life
- Auto Power-Off
- Made in the USA
- NOTE: For all the capabilities of the MapMaster and length measurements, purchase the MapMaster 2.0.
APPLICATION
- Tests CAT-6, Cat-5e, Cat-5, Cat-4, Cat-3 and coax cables
- Tests shielded cables
- Mapping - video and data cables can be connected to their respective remotes at the same time to improve testing efficiency of 'tech' cable (both data & coax cables in one jacket)
- Patch cables may be tested without removing the master remote from storage
- Mapping - optional data and video, custom ID remotes (numbered 1 thru 19) for locating cable runs to wall outlets are available (see accessories)
- Cable test results displayed in wire map format with connector pin numbers
- Voltage detection warning icon
- LOOP ON - sets up continuous mode which is useful for trouble shooting intermittent problems
